How Vibration Analysis Prevents Costly Motor and Pump Failures

For plant and facilities managers, the worst way to learn that a motor or pump is failing is when it stops. An unplanned breakdown means emergency labour, express freight on parts, and a line or building service down at the worst possible time. Vibration analysis is the single most effective way to see that failure coming — often months in advance — so you can fix it on your schedule instead of its own.

Why rotating equipment “tells” you before it fails

Every motor, pump and fan has a normal vibration signature. As bearings wear, shafts drift out of alignment or an impeller fouls, that signature changes in predictable ways — usually long before anything is audible or hot to the touch. Vibration monitoring reads those changes. It is the foundation of predictive maintenance for rotating equipment, and by most estimates it addresses the majority of rotating-equipment failure modes — commonly put at 60–80%.

Reactive vs predictive: the real cost difference

Run-to-failure feels cheap until something breaks. A seized bearing can wreck a shaft, a housing and a coupling; a failed pump can take out the process it feeds. Compare that with a vibration programme that flags a rising bearing defect weeks out: you order the part, schedule the swap for a planned window, and the job is an hour with a spanner instead of a day with a crane. The measurement is a small, fixed cost; the breakdown it prevents is large and unpredictable.

What the standards actually say

Vibration severity is assessed against the ISO 20816 series, which supersedes the older ISO 10816. It sets out how to measure overall vibration — typically as velocity in mm/s RMS, taken on the bearing housings — and sorts the result into four zones:

• Zone A — the condition of a newly commissioned machine.
• Zone B — acceptable for long-term operation.
• Zone C — unsatisfactory; tolerable for a limited period while you plan action.
• Zone D — severe enough to cause damage. Investigate now.

Different machine groups carry different limits — ISO 20816-3 covers industrial machines from roughly 15 kW to 50 MW, and ISO 20816-7 deals with rotodynamic pumps — so it is the zone, not the raw number, that drives the decision.

From “how much” to “what’s wrong”

An overall number tells you something is off; frequency analysis tells you what. By breaking the signal into its frequencies (an FFT spectrum), an analyst can read the fault from where the energy sits:

• Imbalance shows up at once the running speed (1×).
• Misalignment typically appears at twice running speed (2×), often with axial vibration.
• Looseness produces a run of harmonics.
• Bearing wear shows at characteristic high frequencies; envelope (bearing) analysis can detect these defects months before failure.
• Cavitation in a pump produces a distinctive broadband signature.

That diagnosis turns a vague “it’s vibrating” into a specific work order: which bearing, which fault, how urgent.

Building a simple programme

You don’t need a plant full of sensors to start. A workable programme has four parts: establish a baseline for each critical machine while it is healthy; take readings on a regular route; trend them so you see change over time (a rising trend matters more than any single reading); and act on alarms before they reach Zone D. Prioritise the equipment where a failure hurts most — the pumps and motors your operation can’t run without.

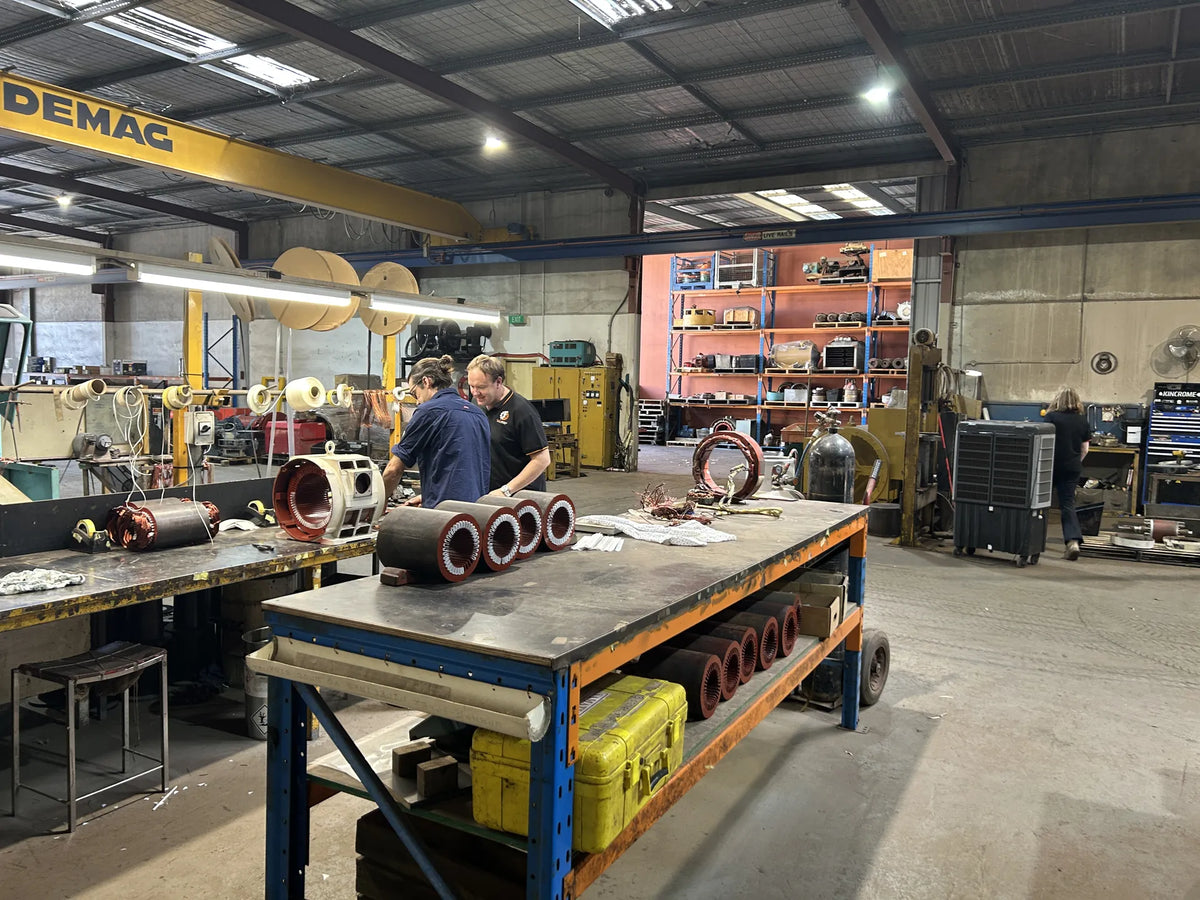

Perth Rewind Industries offers machine vibration analysis alongside our motor and pump workshop, so a reading that flags a problem connects straight to the people who can fix it. Learn more on our machine vibration analysis page, or get in touch to talk through a monitoring plan for your critical equipment.
